Thrust Ball bearing-Banded PRECISION BEARING

Click View Big PIC

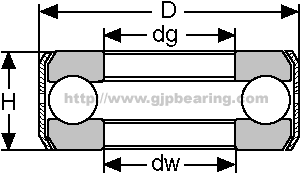

GJP Code	INA Code	Aetna Code	Dimensions-inch size				Weight
GJP Code	INA Code	Aetna Code	D	dw	dg	H	KGS
D-1	D-1	E-1	1.2187	0.5000	0.5312	0.5625	0.054
D-2	D-2	E-2	1.2187	0.5625	0.5937	0.5625	0.051
D-3	D-3	E-3	1.3437	0.6250	0.6562	0.5625	0.063
D-4	D-4	E-4	1.3437	0.6875	0.7187	0.5625	0.082
D-5	D-5	E-5	1.4687	0.7500	0.7812	0.5625	0.070
D-6	D-6	E-6	1.4687	0.8125	0.8437	0.5625	0.065
D-7	D-7	E-7	1.8437	0.8750	0.9062	0.6250	0.126
D-8	D-8	E-8	1.8437	0.9375	0.9687	0.6250	0.121
D-9	D-9	E-9	1.9687	1.0000	1.0312	0.6250	0.137
D-10	D-10	E-10	1.9687	1.0625	1.0937	0.6250	0.130
D-11	D-11	E-11	2.0937	1.1250	1.1562	0.6250	0.149
D-12	D-12	E-12	2.0937	1.1875	1.2187	0.6250	0.142
D-13	D-13	E-13	2.3437	1.2500	1.2812	0.6250	0.185
D-14	D-14	E-14	2.3437	1.3125	1.3437	0.6250	0.180
D-15	D-15	E-15	2.4687	1.3750	1.4062	0.6250	0.205
D-16	D-16	E-16	2.4687	1.4375	1.4687	0.6250	0.191
D-17	D-17	E-17	2.5937	1.5000	1.5312	0.6250	0.209
D-18	D-18	E-18	2.5937	1.5625	1.5937	0.6250	0.200
D-19	D-19	E-19	2.9687	1.6250	1.6562	0.8125	0.386
D-20	D-20	E-20	2.9687	1.6875	1.7187	0.8125	0.380
D-21	D-21	E-21	3.0937	1.7500	1.7812	0.8125	0.402
D-22	D-22	E-22	3.0937	1.8125	1.8437	0.8125	0.391
D-23	D-23	E-23	3.2187	1.8750	1.9062	0.8125	0.422
D-24	D-24	E-24	3.2187	1.9375	1.9687	0.8125	0.411
D-25	D-25	E-25	3.3437	2.0000	2.0312	0.8125	0.442
D-26	D-26	E-26	3.3437	2.0625	2.0937	0.8125	0.431
D-27	D-27	E-27	3.5937	2.1250	2.1562	0.8125	0.526
D-28	D-28	E-28	3.5937	2.1875	2.2187	0.8125	0.499
D-29	D-29	E-29	3.7187	2.2500	2.2812	0.8125	0.540
D-30	D-30	E-30	3.7187	2.3125	2.3437	0.8125	0.517
D-31	D-31	E-31	3.8437	2.3750	2.4062	0.8125	0.567
D-32	D-32	***	3.8437	2.4375	2.4687	0.8125	0.544
D-33	D-33	E-33	3.9687	2.5000	2.5312	0.8125	0.581
D-34	D-34	***	3.9687	2.5625	2.5937	0.8125	0.558
D-35	D-35	***	4.3437	2.6250	2.6562	1.0000	0.875
D-36	D-36	***	4.3437	2.6875	2.7187	1.0000	0.885
D-37	D-37	E-37	4.4687	2.7500	2.7812	1.0000	0.953
D-38	D-38	***	4.4687	2.8125	2.8437	1.0000	0.921
D-39	D-39	E-40	4.5937	2.9375	2.9692	1.0000	0.966
D-39 1/2	D-43	E-41	4.5937	3.0000	3.0625	1.0000	0.953
D-40	D-40	***	4.7187	3.0000	3.0312	1.0000	1.021
D-41	D-41	E-43	4.9687	3.2500	3.2812	1.0000	1.102
D-42	D-42	E-45	5.2187	3.5000	3.5312	1.0000	1.148
Banded Thrust bearing
This series is precision ground to ABEC -1 and ABEC-3 tolerances.
dg dimension may vary between manufacturers.
