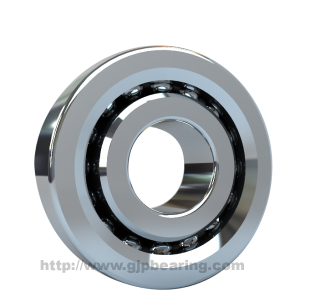

    BALL SCREW SUPPORT BEARING PRECISION BEARING

    Click View Big PIC
    Ball Screw Support Bearings have 60 degree angle contact, and could bear large Axial load, these kinds of
    bearings are mainly used on ball screw in precision machine tools, at the same, they could be used on motor
    which require high speed and large axial load, the dimensional accuracy could be P5, P4, P2 grade. Universal
    Matching is available and they have the sealing type also. It's mainly including TAC seris, BS series, BSB series, 7602/7603 series.

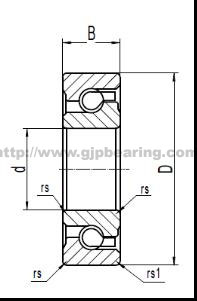

    Dimensions Code rsmin Weight Loading （KN） Max Axial Load      Cr Limited Speed Preload   Fv
    d D B FAG Code GJP Code NSK Code kg Cr Cor KN GREASE Nmm
    12 32 10 7602012TVP 760201 *** 0.6 0.042 12 13 5 8000 1.4
    15 35 11 7602015TVP 760202 *** 0.6 0.052 13 15 6 6700 1.3
    47 15 BS1547 BSB015047 15TAC47B 0.6 0.058 15 17 7 7500 2.1
    17 40 12 7602017TVP 760203 *** 0.6 0.074 17 20 9 6000 1.7
    47 15 BS1747 BSB017045 17TAC47B 1 0.114 22 29 15 8000 2.4
    20 47 14 7602020TVP 760204 *** 1 0.139 20 26 11 5000 2.3
    47 15 BS2047 BSB020047 20TAC47B 1 0.135 22 29 15 8000 2.4
    52 15 7603020TVP 760304 *** 1.1 0.17 25 32 14 4500 2.9
    25 52 15 7602025TVP 760205 *** 1 0.147 22 31 13 4500 2.5
    62 15 BS2562 BSB025062 25TAC62B 1 0.252 29 44 20 5600 3.2
    62 17 7603025TVP 760305 *** 1.1 0.275 29 42 18 3800 3.3
    30 62 15 BS3062 BSB030062 30TAC62B 1 0.224 29 44 20 5600 3.2
    62 16 7602030TVP 760206 *** 1 0.232 26 39 17 3800 2.9
    72 19 7603030TVP 760306 *** 1.1 0.409 35 55 24 3200 4.3
    35 72 15 BS3572 BSB035072 35TAC72B 1 0.31 31 52 22 4800 3.4
    72 17 7602035TVP 760207 *** 1.1 0.339 30 50 21 3200 3.3
    80 21 7603035TVP 760307 *** 1.5 0.546 37 61 27 3000 4.8
    40 72 15 BS4072 BSB040072 40TAC72B 1 0.275 32 53 22 4800 3.5
    80 18 7602040TVP 760208 *** 1.1 0.418 38 64 28 2800 4.3
    90 20 BS4090 BSB040090 40TAC90B 1 0.674 59 98 41 4000 6.5
    90 23 7603040TVP 760308 *** 1.5 0.751 50 83 36 2600 5.6
    45 75 15 BS4575 BSB045075 45TAC75B 1 0.27 33 58 23 4300 3.6
    85 19 7602045TVP 760209 *** 1.1 0.488 38 68 28 2600 4.5
    100 20 BS45100 BSB045100 45TAC100B 1 0.842 62 109 43 3600 6.8
    100 25 7603045TVP 760309 *** 1.5 0.992 59 104 45 2200 7
    50 90 20 7602050TVP 760210 *** 1.1 0.557 39 75 32 2400 4.9
    100 20 BS50100 BSB050100 50TAC100B 1 0.778 63 121 44 3600 6.9
    110 27 7603050TVP 760310 *** 2 1.29 70 127 53 2000 7.6
    55 90 15 BS5590 BSB055090 55TAC90B 1 0.537 59 108 41 3200 6.5
    100 20 BS55100 BSB055100 55TAC100B 1 0.714 63 114 44 3400 6.9
    100 21 7602055TVP 760211 *** 1.5 0.74 41 82 34 2200 4.6
    120 20 BS55120 BSB055120 55TAC120B 1 1.23 67 121 47 3000 7.4
    120 29 7603055TVP 760311 *** 2 1.67 80 146 63 1900 8.8
    60 110 22 7602060TVP 760212 *** 1.5 0.94 56 112 48 2000 6.5
    120 20 BS60120 BSB060120 60TAC120B 1 1.16 67 126 47 3000 7.4
    130 31 7603060TVP 760312 *** 2.1 2.08 88 166 75 1800 10
    65 120 23 7602065TVP 760213 *** 1.5 1.19 57 122 50 1800 7
    140 33 7603065TVP 760313 *** 2.1 2.58 100 196 90 1600 12
    70 125 24 7602070TVP 760214 *** 1.5 1.3 66 137 56 1800 7
    150 35 7603070TVP 760314 *** 2.1 3.16 110 220 95 1600 12
    75 110 15 BS75110 BSB075110 75TAC110B 1.5 0.984 78 118 46 1600 11
    130 25 7602075TVP 760215 *** 1.5 1.42 59 135 63 1600 7.6
    160 37 7603075TVP 760315 *** 2.1 3.74 125 255 118 1400 15
    80 140 26 7602080TVP 760216 *** 2 1.72 77 173 75 1500 8.9
    170 39 7603080TVP 760316 *** 2.1 4.5 137 285 132 1400 16
    85 150 28 7602085TVP 760217 *** 2 2.17 88 200 85 1400 11
    180 41 7603085TVP 760317 *** 3 5.24 160 325 150 1300 18
    90 160 30 7602090TVP 760218 *** 2 2.67 98 224 100 1400 11
    190 43 7603090TVP 760318 *** 3 6.18 163 345 160 1200 18
    95 170 32 7602095TVP 760219 *** 2.1 3.25 110 255 112 1300 12
    200 45 7603095TVP 760319 *** 3 7.22 163 360 170 1200 19
    100 150 22.5 BS110150 BSB110150 110TAC150B 2.1 2.187 89 210 78 1500 8.9
    180 34 7602100TVP 760220 *** 2.1 3.9 122 285 125 1200 14
    215 47 7603100TVP 760320 *** 3 8.78 193 430 212 1100 22
    TVP: Window type cage, glass-fibre reinforced polyamide
