UCNST200 PRECISION BEARING

Click View Big PIC

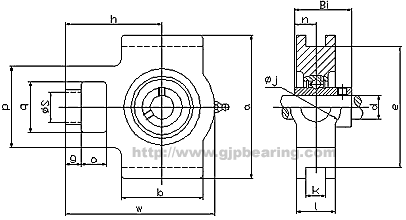

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)															Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	Bi	n	Bearing No.	Housing No.	Housing Wt (kg)
UCNST204-12 UCNST204	3/4	20	16	10	48	31	19	44	7.9	76.2	89	91	37	20	59	31	17.2	UC204-12 UC204	NST204	0.68


UCNST205-13 UCNST205-14 UCNST205-15 UCNST205-16 UCNST205	13/16 7/8 15/16 1	25	16	10	48	31	19	49	7.9	76.2	89	137	37	20	59	34	17.4	UC205-13 UC205-14 UC205-15 UC205-16 UC205	NST205	0.61
UCNST206-17 UCNST206-18 UCNST206-19 UCNST206-20 UCNST206	1-1/16 1-1/8 1-3/16 1-1/4	30	16	13	54	34	22	60	7.9	89	102	110	41	22	70	38.1	20	UC206-17 UC206-18 UC206-19 UC206-20 UC206	NST206	0.79
UCNST207-20 UCNST207-21 UCNST207-22 UCNST207-23 UCNST207	1-1/4 1-5/16 1-3/8 1-7/16	35	19	13	54	34	22	67	7.9	89	102	118	41	23	75	49.2	19.7	UC207-20 UC207-21 UC207-22 UC207-23 UC207	NST207	1.14
UCNST208-24 UCNST208-25 UCNST208	1-1/2 1-9/16	40	19	16	67	40	29	75	7.9	101.6	114	130	46	25	83	49.2	23	UC208-24 UC208-25 UC208	NST208	1.87
UCNST209-26 UCNST209-27 UCNST209-28 UCNST209	1-5/8 1-11/16 1-3/4	45	19	16	67	40	29	79	7.9	101.6	114	138	46	26	87	49.2	23	UC209-26 UC209-27 UC209-28 UC209	NST209	1.51
UCNST210-29 UCNST210-30 UCNST210-31 UCNST210-32 UCNST210	1-13/16 1-7/8 1-15/16 2	50	19	16	67	40	29	84	7.9	101.6	114	145	46	27	91	51.6	22.7	UC210-29 UC210-30 UC210-31 UC210-32 UC210	NST210	1.62
UCNST211-32 UCNST211-33 UCNST211-34 UCNST211-35 UCNST211	2 2-1/16 2-1/8 2-3/16	55	25.4	19	83	49	35	94	7.9	130.2	146	164	54	29	105	55.6	27	UC211-32 UC211-33 UC211-34 UC211-35 UC211	NST211	3
UCNST212-36 UCNST212-37 UCNST212-38 UCNST212-39 UCNST212	2-1/4 2-5/16 2-3/8 2-7/16	60	25.4	19	83	49	35	103	7.9	130.2	146	186	54	30	113	65	26.9	UC212-36 UC212-37 UC212-38 UC212-39 UC212	NST212	3.48

WE SPECIALIZE IN PRODUCING ALL TYPE OF MOUNTED UNIT BEARINGS..
