UCFCSX00 PRECISION BEARING

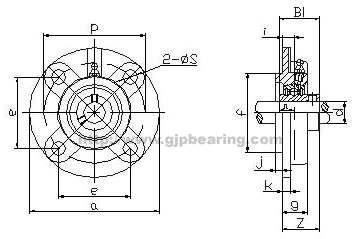

Click View Big PIC

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)												Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	a	p	e	i	s	j	k	g	f	z	Bi	n	(in)	(mm)	Bearing No.	Housing No.	Housing Wt (kg)
UCFCSX05-16 UCFCSX05	1	25	111	92	65	10	9.5	6.4	9.5	24	76.2	32.2	38.1	15.9	5/16	M8	UCX05-16 UCX05	FCSX05	1.02
UCFCSX06-19 UCFCSX06-20 UCFCSX06	1-3/16 1-1/4	30	127	105	74.2	8	12	9.5	9.5	22	85.7	33.4	42.9	17.5	3/8	M10	UCX06-19 UCX06-20 UCX06	FCSX06	1.46
UCFCSX07-22 UCFCSX07-23 UCFCSX07	1-3/8 1-7/16	35	133	111	78.5	9	12	11.1	11	26	92	39.2	49.2	19	3/8	M10	UCX07-22 UCX07-23 UCX07	FCSX07	1.94
UCFCSX08-24 UCFCSX08	1-1/2	40	133	111	78.5	9	12	11.1	11	26	92	39.2	49.2	19	3/8	M10	UCX08-24 UCX08	FCSX08	2.4
UCFCSX09-26 UCFCSX09-27 UCFCSX09-28 UCFCSX09	1-5/8 1-11/16 1-3/4	45	156	130	92	8	14	11.9	11	25	108	40.6	51.6	19	7/16	M12	UCX09-26 UCX09-27 UCX09-28 UCX09	FCSX09	2.8
UCFCSX10-31 UCFCSX10-32 UCFCSX10	1-15/16 2	50	162	137	96.2	7	14	15.9	11	25	114	40.4	55.6	22.2	7/16	M12	UCX10-31 UCX10-32 UCX10	FCSX10	3.06
UCFCSX11-35 UCFCSX11-36 UCFCSX11	2-3/16 2-1/4	55	181	152	108	4	16	22.2	12.7	26	127	43.7	65.1	25.4	1/2	M14	UCX11-35 UCX11-36 UCX11	FCSX11	4.3
UCFCSX12-38 UCFCSX12-39 UCFCSX12	2-3/8 2-7/16	60	194	165	117	11	16	19.8	14.3	33	140	50.7	65.1	25.4	1/2	M14	UCX12-38 UCX12-39 UCX12	FCSX12	5.6
UCFCSX13-40 UCFCSX13	2-1/2	65	194	165	117	11	16	19.8	14.3	33	140	55.4	74.6	30.2	1/2	M14	UCX13-40 UCX13	FCSX13	5.8
UCFCSX14-44 UCFCSX14	2-3/4	70	222	191	134	14	19	19.8	14.3	36	162	58.5	77.8	33.3	5/8	M16	UCX14-44 UCX14	FCSX14	7.7
UCFCSX15-47 UCFCSX15-48 UCFCSX15	2-15/16 3	75	222	191	134	12	19	22	15.9	35	162	61.3	82.6	33.3	5/8	M16	UCX15-47 UCX15-48 UCX15	FCSX15	8.3
UCFCSX16-50 UCFCSX16	3-1/4	80	260	219	155	10	23	25.4	19	36	187	61.6	85.7	34.1	3/4	M20	UCX16-50 UCX16	FCSX16	10.6
UCFCSX17-55 UCFCSX17	3-7/16	85	260	219	155	10	23	25.4	19	36	187	66.3	96	39.7	3/4	M20	UCX17-55 UCX17	FCSX17	11.2
UCFCSX18		90	260	219	155	12	23	27.8	19	43	187	73.1	104	42.9	3/4	M20	UCX18	FCSX18	11.9
UCFCSX20		100	276	238	168	22	23	27.8	22.2	66	206	90.3	118	49.2	3/4	M20	UCX20	FCSX20	18.4

WE SPECIALIZE IN PRODUCING ALL TYPE OF MOUNTED UNIT BEARINGS..
