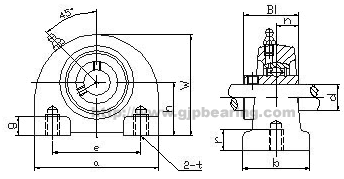

| UCPA200 PRECISION BEARING |
| BearingUint No. |
Shaft Dia d |
Dimensinons(mm) |
Bolt Used |
Bearing No. |
Housing No. |
Housing
Wt (kg) |
| h |
a |
e |
b |
t |
r |
g |
w |
Bi |
n |
(mm) |
| (in) |
(mm) |
| UCPA201-8 |
1/2 |
|
30.2 |
76 |
52 |
38 |
M10 |
15 |
8 |
62 |
31 |
12.7 |
M10x1.5 |
UC201-8 |
PA204 |
0.42 |
| UCPA202-9 |
9/16 |
|
UC202-9 |
| UCPA202-10 |
5/8 |
|
UC202-10 |
| UCPA203-11 |
11/16 |
|
UC203-11 |
| UCPA204-12 |
3/4 |
|
UC204-12 |
| UCPA201 |
|
12 |
UC201 |
| UCPA202 |
|
15 |
UC202 |
| UCPA203 |
|
17 |
UC203 |
| UCPA204 |
|
20 |
UC204 |
| UCPA205-13 |
13/16 |
25 |
36.5 |
84 |
56 |
38 |
M10 |
15 |
10 |
72 |
34.1 |
14.3 |
M10x1.5 |
UC205-13 |
PA205 |
0.61 |
| UCPA205-14 |
7/8 |
UC205-14 |
| UCPA205-15 |
15/16 |
UC205-15 |
| UCPA205-16 |
1 |
UC205-16 |
| UCPA205 |
|
UC205 |
| UCPA206-17 |
1-1/16 |
30 |
42.9 |
94 |
66 |
48 |
M14 |
18 |
10 |
84 |
38.1 |
15.9 |
M14x2 |
UC206-17 |
PA206 |
0.93 |
| UCPA206-18 |
1-1/8 |
UC206-18 |
| UCPA206-19 |
1-3/16 |
UC206-19 |
| UCPA206-20 |
1-1/4 |
UC206-20 |
| UCPA206 |
|
UC206 |
| UCPA207-20 |
1-1/4 |
35 |
47.6 |
110 |
80 |
48 |
M14 |
20 |
12 |
95 |
42.9 |
17.5 |
M14x2 |
UC207-20 |
PA207 |
1.21 |
| UCPA207-21 |
1-5/16 |
UC207-21 |
| UCPA207-22 |
1-3/8 |
UC207-22 |
| UCPA207-23 |
1-7/16 |
UC207-23 |
| UCPA207 |
|
UC207 |
| UCPA208-24 |
1-1/2 |
40 |
49.2 |
116 |
84 |
54 |
M14 |
20 |
12 |
100 |
49.2 |
19.0 |
M14x2 |
UC208-24 |
PA208 |
1.47 |
| UCPA208-25 |
1-9/16 |
UC208-25 |
| UCPA208 |
|
UC208 |
| UCPA209-26 |
1-5/8 |
45 |
54.2 |
120 |
90 |
54 |
M14 |
25 |
12 |
108 |
49.2 |
19.0 |
M14x2 |
UC209-26 |
PA209 |
1.5 |
| UCPA209-27 |
1-11/16 |
UC209-27 |
| UCPA209-28 |
1-3/4 |
UC209-28 |
| UCPA209 |
|
UC209 |
| UCPA210-29 |
1-13/16 |
50 |
57.2 |
130 |
94 |
60 |
M16 |
25 |
14 |
116 |
51.6 |
19.0 |
M16x2 |
UC210-29 |
PA210 |
2.0 |
| UCPA210-30 |
1-7/8 |
UC210-30 |
| UCPA210-31 |
1-15/16 |
UC210-31 |
| UCPA210-32 |
2 |
UC210-32 |
| UCPA210 |
|
UC210 |
| UCPA211-32 |
2 |
55 |
63.5 |
140 |
104 |
66 |
M16 |
25 |
14 |
125 |
55.6 |
22.2 |
M16x2 |
UC211-32 |
PA211 |
2.5 |
| UCPA211-33 |
2-1/16 |
UC211-33 |
| UCPA211-34 |
2-1/8 |
UC211-34 |
| UCPA211-35 |
2-3/16 |
UC211-35 |
| UCPA211 |
|
UC211 |
| UCPA212-36 |
2-1/4 |
60 |
69.9 |
150 |
114 |
68 |
M16 |
25 |
15 |
138 |
65.1 |
25.4 |
M16x2 |
UC212-36 |
PA212 |
2.7 |
| UCPA212-37 |
2-5/16 |
UC212-37 |
| UCPA212-38 |
2-3/8 |
UC212-38 |
| UCPA212-39 |
2-7/16 |
UC212-39 |
| UCPA212 |
|
UC212 |
| UCPA213-40 |
2-1/2 |
65 |
76.2 |
160 |
124 |
70 |
M16 |
25 |
15 |
150 |
65.1 |
25.4 |
M16x2 |
UC213-40 |
PA213 |
4.37 |
| UCPA213-41 |
2-9/16 |
UC213-41 |
| UCPA213 |
|
UC213 |
|
|
|
