UCPX00 PRECISION BEARING

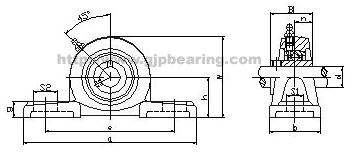

Click View Big PIC

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)										Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	h	a	e	b	s2	s1	g	w	Bi	n	(in)	(mm)	Bearing No.	Housing No.	Housing Wt (kg)
UCPX05-16 UCPX05	1	25	44.4	159	119	51	25	17	18	85	38.1	15.9	1/2	M14	UCX05-16 UCX05	PX05	1.02
UCPX06-19 UCPX06-20 UCPX06	1-3/16 1-1/4	30	47.6	175	127	57	25	17	20	94	42.9	17.5	1/2	M14	UCX06-19 UCX06-20 UCX06	PX06	1.33
UCPX07-22 UCPX07-23 UCPX07	1-3/8 1-7/16	35	54	203	144	57	30	17	22	105	49.2	19	1/2	M14	UCX07-22 UCX07-23 UCX07	PX07	1.71
UCPX08-24 UCPX08	1-1/2	40	58.7	222	156	67	32	20	26	113	49.2	19	5/8	M16	UCX08-24 UCX08	PX08	2.09
UCPX09-26 UCPX09-27 UCPX09-28 UCPX09	1-5/8 1-11/16 1-3/4	45	58.7	222	156	67	33	20	26	116	51.6	19	5/8	M16	UCX09-26 UCX09-27 UCX09-28 UCX09	PX09	2.3
UCPX10-31 UCPX10-32 UCPX10	1-15/16 2	50	63.5	241	171	73	36	20	27	126	55.6	22.2	5/8	M16	UCX10-31 UCX10-32 UCX10	PX10	2.85
UCPX11-35 UCPX11	2-3/16	55	69.8	260	184	79	36	25	30	139	65.1	25.4	3/4	M20	UCX11-35 UCX11	PX11	4.04
UCPX12-38 UCPX12-39 UCPX12	2-3/8 2-7/16	60	76.2	286	203	83	41	25	32	151	65.1	25.4	3/4	M20	UCX12-38 UCX12-39 UCX12	PX12	4.85
UCPX13-40 UCPX13	2-1/2	65	76.2	286	203	83	41	25	32	154	74.6	30.2	3/4	M20	UCX13-40 UCX13	PX13	5
UCPX14-44 UCPX14	2-3/4	70	88.9	330	229	89	51	27	35	172	77.8	33.3	7/8	M22	UCX14-44 UCX14	PX14	7.12
UCPX15-47 UCPX15-48 UCPX15	2-15/16 3	75	88.9	330	229	89	51	27	35	177	82.6	33.3	7/8	M22	UCX15-47 UCX15-48 UCX15	PX15	6.65
UCPX16-50 UCPX16	3-1/8	80	101.6	381	283	102	59	27	42	197	85.7	34.1	7/8	M22	UCX16-50 UCX16	PX16	9.5
UCPX17-52 UCPX17	3-1/4	85	101.6	381	283	102	59	27	42	202	96	39.7	7/8	M22	UCX17-52 UCX17	PX17	10.64
UCPX18-56 UCPX18	3-1/2	90	101.6	381	283	111	60	27	45	206	104	42.9	7/8	M22	UCX18-56 UCX18	PX18	11.5
UCPX20-63 UCPX20-64 UCPX20	3-15/16 4	100	127	432	337	121	64	33	52	250	117.5	49.2	1-1/8	M30	UCX20-63 UCX20-64 UCX20	PX20	19.76

WE SPECIALIZE IN PRODUCING ALL TYPE OF MOUNTED UNIT BEARINGS..
