Metric Series Tapered Roller Bearing PRECISION BEARING

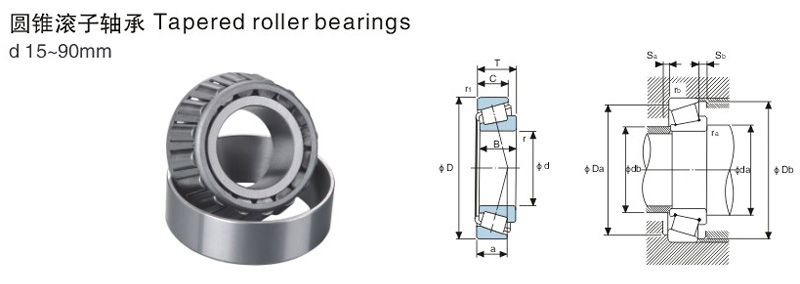

Click View Big PIC

Tapered Roller Bearing can take large axial forces as well as being able to sustain large radial forces.
The inner and outer ring raceways are segments of cones and the rollers are also made with a taper so that the
conical surfaces of the raceways and the roller axes if projected, would all meet at a common point on the main
axis of the bearing.Tapered roller bearings are separable and have the following components: outer ring, inner ring
, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called
the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position
of the cone relative to the cup, these bearings now are widely used on the front wheel of the car
GJP model	Main dimensions			Basic load		Weight
--	d	D	T	Dynamic load	Static Load	Kg
30202	15	35	11.75	11900	13500	0.053
30203	17	40	13.25	20000	20200	0.082
30204	20	47	15.25	28300	29200	0.128
30205	25	52	16.25	31600	34400	0.14
30206	30	62	17.25	40500	43800	0.23
30207	35	72	18.25	53400	59200	0.32
30208	40	80	19.75	59900	65400	0.41
30209	45	85	20.75	64800	74700	0.46
30210	50	90	21.75	73600	87500	0.52
30211	55	100	22.75	94900	114000	0.68
30212	60	110	23.75	99100	117000	0.87
30213	65	120	24.75	12100	146000	1.1
30214	70	125	26.25	128000	157000	1.28
30215	75	130	27.25	141000	179000	1.33
30216	80	140	28.25	151000	187000	1.59
30217	85	150	30.5	184000	235000	2.02
30218	90	160	32.5	197000	250000	2.49
30219	95	170	34.5	218000	276000	2.95
30220	100	180	37	278000	375000	3.77
30221	105	190	39	309000	419000	4.48
30222	110	200	41	314000	445000	5.21
30224	120	215	43.5	335000	487000	6.19
30226	130	230	43.75	364000	525000	6.94
30228	140	250	45.75	407000	589000	8.75
30302	15	42	14.25	24400	22500	0.1
30303	17	47	15.25	30300	28400	0.13
30304	20	52	16.25	35600	34500	0.17
30305	25	62	18.25	50200	50100	0.26
30306	30	72	20.75	59500	60600	0.38
30307	35	80	22.75	80400	85600	0.52
30308	40	90	25.25	91400	102000	0.72
30309	45	100	27.25	114000	130000	0.96
30310	50	110	29.25	131000	150000	1.23
30311	55	120	31.5	150000	172000	1.56
30312	60	130	33.5	186000	221000	1.96
30313	65	140	36	206000	242000	2.41
30314	70	150	38	233000	276000	2.92
30315	75	160	40	250000	318000	3.58
30316	80	170	42.5	278000	356000	4.27
30317	85	180	44.5	304000	292000	4.97
30318	90	190	46.5	341000	341000	5.79
30319	95	200	49.5	368000	483000	6.8
30320	100	215	51.5	402000	490000	8.2
31305	25	62	18.25	40700	46000	0.264
31306	30	72	20.75	47300	50000	0.396
31307	35	80	22.75	61600	67000	0.518
31308	40	90	25.25	81000	96000	0.727
31309	45	100	27.25	91000	102000	0.947
31310	50	110	29.25	106000	120000	1.22
31311	55	120	31.5	130000	158000	1.56
31312	60	130	33.5	145000	176000	1.91
31313	65	140	36	165000	202000	2.39
31314	70	150	38	218000	274000	2.95
31315	75	160	40	209000	245000	3.39
32004X	20	42	15	21100	29400	0.1
32005X	25	47	15	28500	35400	0.14
32006X	30	55	17	36300	45400	0.17
32007X	35	62	18	44200	57800	0.23
32008X	40	68	19	51400	71600	0.27
32009X	45	75	20	61600	84600	0.33
32010X	50	80	20	64800	92900	0.37
32011X	55	90	23	88000	126000	0.57
32012X	60	95	23	89600	132000	0.6
32013X	65	100	23	91000	138000	0.63
32014X	70	110	25	105000	166000	0.94
32015X	75	115	25	106100	170000	0.9
32016X	80	125	29	154000	239000	1.28
32017X	85	130	29	151000	235000	1.34
32018X	90	140	32	170000	264000	1.73
32019X	95	145	32	172000	274000	1.8
32020X	100	150	32	180000	296000	1.77
32021X	105	160	35	210000	339000	2.32
32022X	110	170	38	261000	433000	3.11
32024X	120	180	38	271000	466000	3.34
32028X	140	210	45	364000	641000	5.29
32030X	150	225	48	369000	655000	6.38
32032X	160	240	51	429000	780000	7.53
32036X	180	280	64	644000	1160000	14.5
32204	20	47	19.25	36500	39500	0.161
32205	25	52	19.25	42000	47000	0.184
32206	30	62	21.25	50300	57600	0.28
32207	35	72	24.25	69300	82300	0.43
32208	40	80	24.75	74900	86400	0.52
32209	45	85	24.75	81100	98800	0.56
32210	50	90	24.75	82300	100000	0.6
32211	55	100	26.75	112000	141000	0.82
32212	60	110	29.75	127000	160000	1.12
32213	65	120	32.75	161000	209000	1.52
32214	70	125	33.25	169000	224000	1.59
32215	75	130	33.25	170000	227000	1.65
32216	80	140	35.25	190000	249000	2.03
32217	85	150	38.5	227000	305000	2.57
32218	90	160	42.5	258000	348000	3.28
32219	95	170	45.5	293000	401000	4.01
32220	100	180	49	341000	478000	4.9
32221	105	190	53	369000	516000	5.9
32222	110	200	56	426000	612000	7.06
32224	120	215	61.5	502000	753000	8.89
32226	130	230	67.75	429000	895000	11.5
32228	140	250	71.75	640000	1060000	14.4
32230	150	270	77	718000	1190000	18.2
32232	160	290	84	852000	1440000	21.1
30034	170	310	91	1010000	1630000	28.5
32236	180	320	91	998000	1720000	29.8
32238	190	340	97	1110000	1920000	36
32240	200	360	104	1210000	2000000	42.7
32244	220	400	115	1530000	2560000	58.3
32304	20	52	22.25	46400	48300	0.23
32305	25	62	25.25	67000	72300	0.36
32306	30	72	28.75	81100	89800	0.55
32307	35	80	32.75	107000	123000	0.74
32308	40	90	35.25	123000	150000	1.01
32309	45	100	38.25	143000	172000	1.34
32310	50	110	42.25	173000	211000	1.66
32310/55	55	110	42.25	173000	211000	1.66
32311	55	120	45.5	211000	265000	2.13
32312	60	130	48.5	244000	310000	2.69
32313	65	140	51	280000	358000	3.26
32314	70	150	54	316000	407000	4.25
32315	75	160	58	346000	488000	5.34
32316	80	170	61.5	387000	549000	6.38
32317	85	180	63.5	421000	599000	7.3
32318	90	190	67.5	477000	477000	8.78
32319	95	200	71.5	515000	745000	10.7
32320	100	215	77.5	572000	780000	13
32321	105	225	81.5	646000	95000	14.5
32322	110	240	84.5	722000	1070000	17.8
32324	120	260	90.5	824000	1240000	21.7
32334	170	360	128	13000000	1760000	59.5
33015	75	115	31	147000	240000	1.15
33019	95	145	39	228000	378000	2.19
33022	110	170	47	315000	563000	3.8
33109	45	80	26	88000	119000	0.52
33115	75	125	37	189000	287000	1.73
33116	80	130	37	193000	299000	1.85
33118	90	150	45	284000	447000	3.22
33205	25	52	22	51100	63600	0.22
33206	30	62	25	64400	76500	0.37
33207	35	72	28	84200	106000	0.522
33208	40	80	32	112000	144000	0.73
33209	45	85	32	116000	155000	0.81
33210	50	90	32	120000	166000	0.83
33211	55	100	35	150000	201000	1.13
33212	60	110	38	183000	253000	1.53
33213	65	120	41	205000	280000	1.99
33214	70	125	41	220000	314000	2.08
33215	75	130	41	219000	316000	2.14
33216	80	140	46	272000	403000	2.94
33217	85	150	49	325000	483000	2.03
33220	100	180	63	429000	655000	6.78
