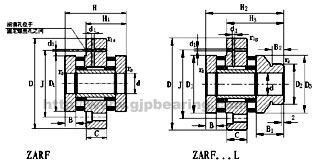

    ZARF PRECISION BEARING

    Click View Big PIC
    ITEM WEIGHT(g) ITEM WEIGHT(g) Dimensions Basic Load Ratings Limiting Speed Setscrew Tightening Torque
    d D H H1 H2 H3 C D1 D2 D3 B B1 B2 r (min) r1 (min) d1 J Radial  Axial oil grease spec amount
    Cr Cor Cr Cor
    Dynamic Static Dynamic Static
    kN kN kN kN rpm rpm Nm
    ZARF 1560TN 420 ZARF 1560LTN 450 15 60 40 26 53 39 14 35 24 34 7.5 20.5 11 0.3 0.6 3.2 46 13 17.5 24.9 53 8500 2200 M6 6 10
    ZARF 1762TN 490 ZARF 1762LTN 520 17 62 43 27.5 57 41.5 14 38 28 38 9 23 11 0.3 0.6 3.2 48 14 19.9 26 57 7800 2100 M6 6 12
    ZARF 2068TN 560 ZARF 2068LTN 610 20 68 46 29 60 43 14 42 30 40 10 24 11 0.3 0.6 3.2 53 14.1 20.6 27.4 77 7000 2000 M6 8 18
    ZARF 2080TN 1100 ZARF 2080LTN 1220 20 80 60 38 75 53 18 52 40 50 12.5 27.5 11 0.3 0.6 3.2 63 22.6 36 64 86 6000 1500 M6 8 38
    ZARF 2575TN 780 ZARF 2575LTN 840 25 75 50 33 65 48 18 47 36 45 10 25 11 0.3 0.6 3.2 58 24.8 39.8 30.5 93.5 6000 1900 M6 8 25
    ZARF 2590TN 1600 ZARF 2590LTN 1750 25 90 60 38 75 53 18 62 48 60 12.5 27.5 11 0.3 0.6 3.2 73 24.8 41.4 80 199 4900 1400 M6 8 55
    ZARF 3080TN 850 ZARF 3080LTN 900 30 80 50 33 65 48 18 52 40 50 10 25 11 0.3 0.6 3.2 63 24.3 41 33.9 110 5500 1800 M6 12 32
    ZARF 30105TN 1950 ZARF 30105LTN 2150 30 105 66 41 82 57 18 68 52 66 14 30 12 0.3 0.6 3.2 85 25.9 45.8 75.7 221 4400 1300 M6 12 75
    ZARF 3590TN 1120 ZARF 3590LTN 1250 35 90 54 35 70 51 18 60 45 58 11 27 12 0.3 0.6 3.2 73 26 47 45.9 105.4 4800 1700 M6 12 42
    ZARF 35110TN 1600 ZARF 35110LTN 1850 35 110 66 41 82 57 18 73 60 73 14 30 12 0.3 0.6 3.2 88 28 52.7 78.2 237.6 4000 1250 M6 12 100
    ZARF 40100TN 1350 ZARF 40100LTN 1450 40 100 54 35 70 51 18 65 50 63 11 27 12 0.3 0.6 3.2 80 30.4 58.6 51.7 180.1 4400 1600 M8 8 55
    ZARF 40115TN 2700 ZARF 40115LTN 3000 40 115 75 47.5 93 65.5 22.5 78 60 78 16 34 12 0.3 0.6 6 94 40.9 72.5 84.2 269.2 3700 1200 M8 8 120
    ZARF 45105TN 1700 ZARF 45105LTN 1850 45 105 60 40 75 55 22.5 70 56 68 11.5 26.5 12 0.3 0.6 6 85 38 74 61 177 4000 1500 M8 8 65
    ZARF 45130TN 3900 ZARF 45130LTN 4300 45 130 82 51 103 72 22.5 90 70 88 17.5 38.5 14 0.3 0.6 6 105 42.5 78.8 115.9 363 3300 1150 M8 8 150
    ZARF 50115TN 2100 ZARF 50115LTN 2450 50 115 60 40 78 58 22.5 78 60 78 11.5 29.5 12 0.3 0.6 6 94 42.6 78.8 44.2 158.4 3600 1200 M8 12 85
    ZARF 50140TN 4200 ZARF 50140LTN 4650 50 140 82 51 103 72 22.5 95 75 93 17.5 38.5 14 0.3 0.6 6 113 45.5 88.1 119.3 387.2 3100 1100 M8 12 180
    ZARF 55145TN 4500 ZARF 55145LTN 5000 55 145 82 51 103 72 22.5 100 80 98 17.5 38.5 14 0.3 0.6 6 118 49 109.9 126 369 2900 1000 M8 12 220
    ZARF 60150TN 4700 ZARF 60150LTN 5350 60 150 82 51 103 72 22.5 105 90 105 17.5 38.5 16 0.3 0.6 6 123 54.9 118.6 141 505 2700 950 M8 12 250
    ZARF 65155TN 5120 ZARF 65155LTN 5720 65 155 82 51 103 72 22.5 110 90 108 17.5 38.5 16 0.3 0.6 6 128 54.2 100.8 126.2 441.4 2600 900 M10 12 270
    ZARF 70160TN 5200 ZARF 70160LTN 6000 70 160 82 51 103 72 22.5 115 100 115 17.5 38.5 16 0.3 0.6 6 133 69.6 143.5 143 532 2400 800 M10 12 330
    ZARF 75185TN 9400 ZARF 75185LTN 10610 75 185 100 62 125 87 27 135 115 135 21 46 16 0.3 1 6 155 95 193 233 769 2100 700 M12 12 580
    ZARF 90210TN 13700 ZARF 90210LTN 15100 90 210 110 69.5 135 97.5 32 160 130 158 22.5 47.5 16 0.3 1 8 180 101 2256 320 1172 1800 700 M12 16 960
    Note:
    1.These load, speed and mass is reference of choice only.
    2.If the cages are made of plastics, TN is added as the suffix of bearing number and the maximum
    allowable working themperrature is 120 degree centigrade in continuous working and 180 degree centigrade in short working.
