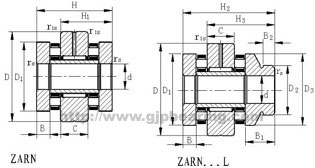

    ZARN PRECISION BEARING

    Click View Big PIC
    ITEM WEIGHT(g) ITEM WEIGHT(g) Dimensions Basic Load Ratings Limiting Speed Tightening Torque
    d D H H1 H2 H3 C D1 D2 D3 B B1 B2 r (min) r1 (min) Radial Axial
    Cr Cor Cr Cor oil grease
    Dynamic Static Dynamic Static
    kN kN kN kN rpm rpm Nm
    ZARN 1545TN 340 ZARN 1545LTN 370 15 45 40 28 53 41 16 35 24 34 7.5 20.5 11 0.3 0.6 14.3 19.6 23.5 64.3 8500 2200 10
    ZARN 1747TN 370 ZARN 1747LTN 410 17 47 43 29.5 57 43.5 16 38 28 38 9 23 11 0.3 0.6 15.4 22.1 24.3 69.3 7800 2100 12
    ZARN 2052TN 410 ZARN 2052LTN 460 20 52 46 31 60 45 16 42 30 40 10 24 11 0.3 0.6 14.1 20.6 27.4 77 7000 2000 18
    ZARN 2062TN 870 ZARN 2062LTN 990 20 62 60 40 75 55 20 52 40 50 12.5 27.5 11 0.3 0.6 22.6 36 64 141 6000 1500 38
    ZARN 2557TN 530 ZARN 2557LTN 590 25 57 50 35 65 50 20 47 36 45 10 25 11 0.3 0.6 24.8 39.8 30.5 93.5 6000 1900 25
    ZARN 2572TN 1170 ZARN 2572LTN 1320 25 72 60 40 75 55 20 62 48 60 12.5 27.5 11 0.3 0.6 24.8 41.4 80 199 4900 1400 55
    ZARN 3062TN 600 ZARN 3062LTN 750 30 62 50 35 65 50 20 52 40 50 10 25 11 0.3 0.6 24.3 41.5 39 101 5500 1800 32
    ZARN 3080TN 1500 ZARN 3080LTN 1700 30 80 66 43 82 59 20 68 52 66 14 30 12 0.3 0.6 25.9 45.8 75.7 221 4400 1300 75
    ZARN 3570TN 800 ZARN 3570LTN 930 35 70 54 37 70 53 20 60 45 58 11 27 12 0.3 0.6 26 47 45.9 105.4 4800 1700 42
    ZARN 3585TN 1650 ZARN 3585LTN 1800 35 85 66 43 82 59 20 73 60 73 14 30 12 0.3 0.6 28 52.7 78.2 237.6 4000 1250 100
    ZARN 4075TN 900 ZARN 4075LTN 1000 40 75 54 37 70 53 20 65 50 63 11 27 12 0.3 0.6 27.5 53 59 163 4400 1600 55
    ZARN 4090TN 2090 ZARN 4090LTN 2390 40 90 75 50 93 68 25 78 60 78 16 34 12 0.3 0.6 40.9 72.5 84.2 269.2 3700 1200 120
    ZARN 4580TN 1120 ZARN 4580LTN 1270 45 80 60 42.5 75 57.5 25 70 56 68 11.5 26.5 12 0.3 0.6 38 74 61 177 4000 1500 65
    ZARN 45105TN 3020 ZARN 45105LTN 3420 45 105 82 53.5 103 74.5 25 90 70 88 17.5 38.5 14 0.3 0.6 40 82 154 405 3300 1150 150
    ZARN 5090TN 1430 ZARN 5090LTN 1780 50 90 60 42.5 78 60.5 25 78 60 78 11.5 29.5 12 0.3 0.6 40 82 90 300 3600 1200 85
    ZARN 50110TN 3300 ZARN 50110LTN 3750 50 110 82 53.5 103 74.5 25 95 75 93 17.5 38.5 14 0.3 0.6 45.4 88.1 119.3 387.2 3100 1100 180
    ZARN 55115TN 3500 ZARN 55115LTN 4000 55 115 82 53.5 103 74.5 25 100 80 98 17.5 38.5 14 0.3 0.6 49 109.9 126 369 2900 1000 220
    ZARN 60120TN 3700 ZARN 60120LTN 4850 60 120 82 53.5 103 74.5 25 105 90 105 17.5 38.5 16 0.3 0.6 54.9 118.6 141 505 2700 950 250
    ZARN 65125TN 4000 ZARN 65125LTN 4600 65 125 82 53.5 103 74.5 25 110 90 108 17.5 38.5 16 0.3 0.6 54.2 100.8 126.2 441.4 2600 900 270
    ZARN 70130TN 4100 ZARN 70130LTN 4850 70 130 82 53.5 103 74.5 25 115 100 115 17.5 38.5 16 0.3 0.6 69.6 143.5 143 532 2400 800 330
    ZARN 75155TN 7900 ZARN 75155LTN 9100 75 155 100 65 125 90 30 135 115 135 21 46 16 0.3 1 95 193 290 890 2100 700 580
    ZARN 90180TN 11800 ZARN 90180LTN 13200 90 180 110 72.5 135 97.5 35 160 130 158 22.5 47.5 16 0.3 1 101 256 320 1172 1800 700 960
    Note:
    1.These load, speed and mass is reference of choice only.
    2.If the cages are made of plastics, suffix ¡°TN¡± is added to the bearing No., the maximum
    allowable working themperrature is 120¡æ in continuous working and 180¡æ in short working.
