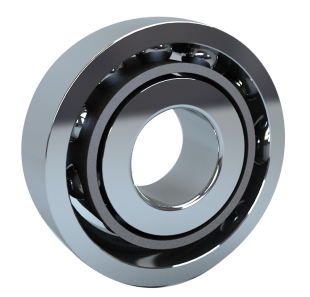

    Single Row Angular Contact Ball Bearings PRECISION BEARING

    Click View Big PIC
    Single Row Angular Contact Ball Bearing not only bears the radial load and axial load at the same time
    but also the pure axial load. It can work under high speed and can only bear axial load in one direction.
     The axial load capacity is determined by contact angle. Axial load capacity is high if contact angle is
    large, but it is more conducive to high-speed rotation if the contact angle is smaller. The contact angle
     is defined as, the angle between the radial line in the plane connecting ball and raceway contact and the
    line vertical axis bearing.
    Dimensions     GJP Code rs r1s Weight Loading Capacity Speed Limited
    d D B min min kg Cr(KN) Cor(KN) min-1
    10 30 9 7200B.TVP 0.6 0.3 0.032 5 2.5 32000
    12 32 10 7201B.TVP 0.6 0.3 0.035 6.95 3.4 28000
    12 37 12 7301B.TVP 1 0.6 0.06 10.6 5 24000
    15 35 11 7202B.TVP 0.6 0.3 0.044 8 4.3 24000
    15 42 13 7302B.TVP 1 0.6 0.082 12.9 6.55 20000
    17 40 12 7203B.TVP 0.6 0.6 0.065 10 5.5 20000
    17 47 14 7303B.TVP 1 0.6 0.109 16 8.3 18000
    20 47 14 7204B.TVP 1 0.6 0.104 13.4 7.65 18000
    20 52 15 7304B.TVP 1.1 0.6 0.143 19 10.4 17000
    25 52 15 7205B.TVP 1 0.6 0.127 14.6 9.3 16000
    25 62 17 7305B.TVP 1.1 0.6 0.223 26 15 14000
    30 62 16 7206B.TVP 1 0.6 0.196 20.4 13.4 13000
    30 72 19 7306B.TVP 1.1 0.6 0.341 32.5 20 11000
    35 72 17 7207B.TVP 1.1 0.6 0.282 27 18.3 11000
    35 80 21 7307B.TVP 1.5 1 0.447 39 25 9500
    40 80 18 7208B.TVP 1.1 0.6 0.367 32 23.2 9500
    40 90 23 7308B.TVP 1.5 1 0.609 50 32.5 8500
    45 85 19 7209B.TVP 1.1 0.6 0.405 36 26.5 8500
    45 100 25 7309B.TVP 1.5 1 0.812 60 40 7500
    50 90 20 7210B.TVP 1.1 0.6 0.458 37.5 28.5 8000
    50 110 27 7310B.TVP 2 1 1.05 69.5 47.5 7000
    55 100 21 7211B.TVP 1.5 1 0.604 46.5 36 7000
    55 120 29 7311B.TVP 2 1 1.38 78 56 6300
    60 110 22 7212B.TVP 1.5 1 0.78 56 44 6300
    60 130 31 7312B.TVP 2.1 1.1 1.72 90 65.5 5600
    65 120 23 7213B.TVP 1.5 1 1 64 53 6000
    65 140 33 7313B.TVP 2.1 1.1 2.12 102 75 5300
    70 125 24 7214B.TVP 1.5 1 1.08 69.5 58.5 5600
    70 150 35 7314B.TVP 2.1 1.1 2.57 114 863.5 5000
    75 130 25 7215B.TVP 1.5 1 1.16 68 58.5 5300
    75 160 37 7315B.TVP 2.1 1.1 3.08 127 100 4500
    80 140 26 7216B.TVP 2 1 1.42 80 69.5 5000
    80 170 39 7316B.TVP 2.1 1.1 3.66 140 114 4300
    85 150 28 7217B.TVP 2 1 1.82 90 80 4500
    85 180 41 7317B.TVP 3 1.1 4.26 150 127 4000
    90 160 30 7218B.TVP 2 1 2.21 106 93 4300
    90 190 43 7318B.TVP 3 1.1 4.99 160 140 3800
    95 170 32 7219B.TVP 2.1 1.1 2.63 116 100 4000
    95 200 45 7319B.TVP 3 1.1 5.77 173 153 3800
    100 180 34 7220B.TVP 2.1 1.1 3.16 129 114 3800
    100 225 49 7320B.TVP 3 1.1 7.16 193 180 3600
    105 190 36 7221B.TVP 2.1 1.1 4.18 143 129 6000
    105 225 49 7321B.TVP 3 1.1 9 200 193 5300
    110 200 38 7222B.TVP 2.1 1.1 4.44 153 143 3600
    110 240 50 7322B.TVP 3 1.1 9.73 224 224 3400
    120 215 40 7224B.TVP 2.1 1.1 5.31 166 160 3400
    120 260 55 7324B.TVP 3 1.1 12.4 250 260 3200
    130 230 40 7226B.TVP 3 1.1 6.12 186 190 3200
    130 280 58 7326B.TVP 4 1.5 15.1 275 300 3000
    140 250 42 7228B.TVP 3 1.1 8.55 196 212 4800
    140 320 65 7328B.TVP 4 1.5 20.4 300 340 4300
    150 270 45 7230B.TVP 3 1.1 10.9 224 255 4500
    150 320 65 7330B.TVP 4 1.5 24.8 325 390 3800
    Note:
    B: Contact Angle is 40 degree centigrade.
    TVP: Solid Window type cage, glass-fibre reinforced Polyamide cage.
